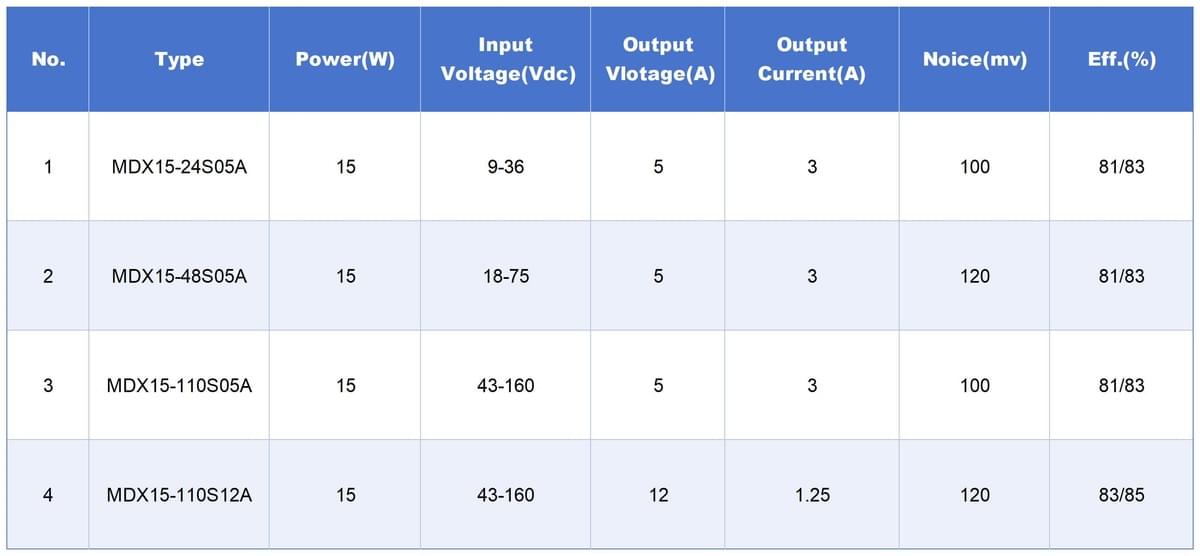

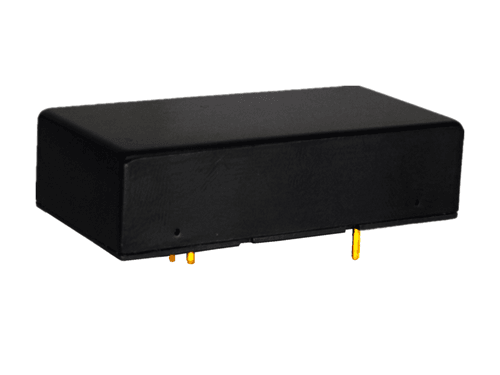

The MDX narrow-foot series is a standard 2*1 module power supply with a wide DC input voltage range of 9-36V / 18-75V / 36-75V / 18-160V / 43-160V / 66-460V. The output voltages available are DC 5V / 12V / 24V, and the output power range is 10-20W. There is no minimum load requirement for stable single-channel output. It features high isolation voltage, and the operating temperature range is from -40℃ to +105℃. The unit includes input under-voltage protection, output over-current protection, over-voltage protection, over-temperature protection, short-circuit protection, remote control, output voltage adjustment, and options for both single and dual-channel output.
